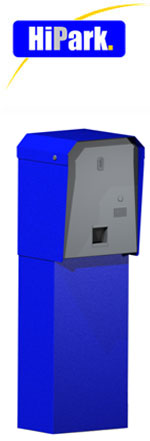

HiPark T31 parking check-out finished unit

Brief description

The HiPark T31 is a basic HiPark parking management system module for automating business routines for both short- and long-term parking clients.
The HiPark T31 performs the following tasks:

• checking the token's electronic mark to verify exit payment
• parking access control for personal electronic cards

Personal electronic cards are issued by parking administration for long-term clients after an agreement is signed. The agreement stipulates the conditions of use and payment for personal cards.

The standard system routine for short-term clients is as follows:

• The client must pay the parking fee before driving to the exit point. At the settlement time, a special electronic mark is written into the token's memory.

• After paying the parking fee, the client drives to the check-out unit. When HiParkT31 detects a car in front of it, it opens the token slot and switches the backlight on.
• The token must be placed into the token slot. The check-out unit verifies the payment mark and the exit time tolerance. If all is in order, the token goes into a hopper, an audio signal is played, and the exit barrier is open.
• The token is returned to the client in case of validity faults. Additionally, a voice message will specify what is wrong and what must be done.


The standard system routine for long-term clients is as follows:

• At the parking area entrance, the client drives to the check-in unit and  places her/his personal card in front of a front-panel reader.
• The HiPark T30 unit checks the validity of the card, writes a special entry mark into the card's memory, and opens the entry barrier. The parking ID, expiry date and time and APB (anti-pass-back) mark are verified.

Basic features

	wireless reading of electronic information — reliability is not affected by moisture, contamination on the token's surface or scratches
	token slot backlight - no need to waste time finding it at night
	embedded coin sensor prevents use of coins instead of tokens
	voice notifications automatically give troubleshooting advice
	narrow chassis – leaves more space for the traffic lane where the traffic island narrows
	rust-resistant metal chassis – all external metal parts are made from either stainless or hot-galvanized steel ensuring the units look tidy even if there are deep surface scratches

Basic specification

Hopper volume	up to 1700 tokens
Token validation time	< 1 sec.
Power supply	220VAC, 50Hz
Power rating (max.)	40W
Unit dimensions (W х H х D, mm)	415 х 1275 х 325
Basement profile (W х D, mm)	400 х 260
Operating temperatures	-20ºС...+50ºС
