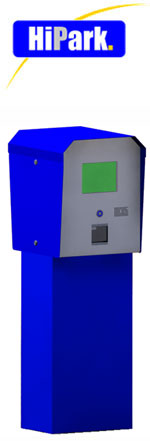

HiPark T32 double sided check-in/check-out finished unit

Brief description

The HiPark T32 double sided unit integrates both the check-in HiPark T30 and check-out HiPark  T31 unit in a single chassis. It is intended to be placed onto traffic islands to control separate entry and exit traffic lanes simultaneously. The double sided functionality of the HiPark T32 allows tokens to be issued at the one side of the unit and retrieved on the other side.

There is no need to reload the tokens from the check-out unit into the check-in unit, as this is done by parking facility clients, who receive their tokens from the unit before driving into the parking area and throw them back into the unit's token slot before driving out.

Thus there is no need to perform the reloading routine of opening and closing the unit to empty or fill up the token hoppers. This improves the reliability of operations, decreases the workload of parking personnel and reduces the possibility of accidentally losing tokens during reloading.















Basic features

  • wireless reading of electronic information — reliability is not affected by moisture, contamination on the token's surface or scratches
  • the possibility of advertising banner show— an embedded transflective high resolution display ensures excellent information visibility even in poor light conditions at twilight or under direct sunlight
  • voice notifications automatically give troubleshooting advice
  • token issuing button backlight – no need to waste time finding it at night
  • token cup backlight – prompt to take a token from the token cup to drive in the parking area
  • embedded coin sensor prevents use of coins instead of tokens
  • token slot backlight - no need to waste time finding it at night
  • narrow chassis – leaves more space for the traffic lane where the traffic island narrows
  • rust-resistant metal chassis – all external metal parts are made from either stainless or hot-galvanized steel, ensuring the units look tidy even if there are deep surface scratches

Basic specification

  • Hopper volume
 up to 250 tokens
  • Average token issuing time
 1 sec.
  • Token validation time
 <1 sec.
  • TFT display size and resolution
 8.4'', 800x600px
  • Power supply
 220VAC, 50Hz
  • Power rating (max.)
 50W
  • Unit dimensions (W х H х D, mm)
 415 х 1275 х 455
  • Basement profile (W х D, mm)
 400 х 260
  • Operating temperatures
 -20ºС...+50ºС
